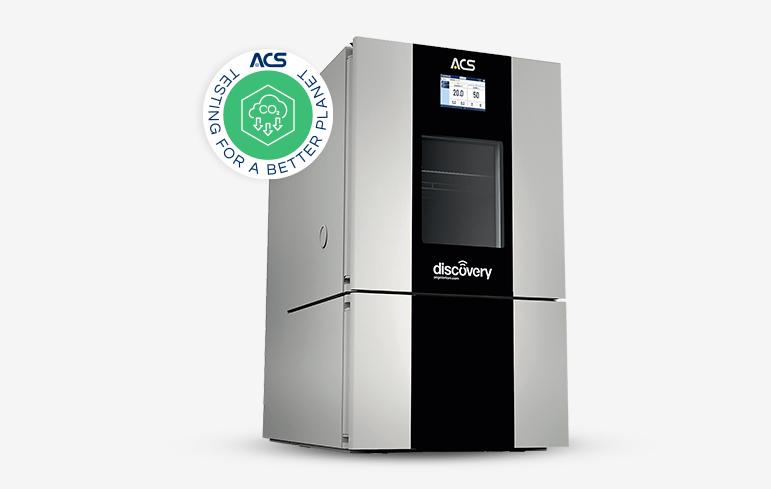

Discovery My chambers with transcritical CO2 cooling system

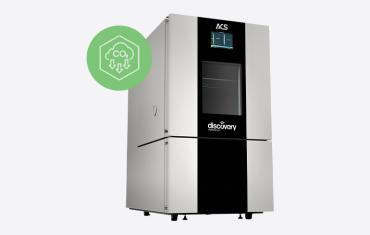

The new T and RH chambers with transcritical CO2 cooling technology are an evolution of the subcritical version already launched on the market and are a revolutionary product that combines innovation, efficiency, sustainability and safety:

They do not require chilled water: like the previous FGAS versions that were equipped with an air condenser, they are equipped with an exchanger that allows operation for ambient temperatures up to +35°C.
Improved cooling: faster below -20°C.
Acoustic comfort: extremely low noise level
Extremely safe: no flammable gases inside
Energy efficiency: reduces consumption by up to 15% (average).
Interchangeability: same dimensions as previous F-GAS versions

The switch to CO2 (R744) in cooling systems has also represented a significant advancement in ACS refrigeration technology.

Unlike conventional systems using R449A - which lose most of their cooling capacity at temperatures below -25°C and reach a minimum temperature of only -40°C - the CO2 cooling unit configuration effectively cools down to -50°C, maintaining a higher cooling capacity even at the minimum temperatures required for automotive testing.

In addition, these systems operate more quietly than conventional systems, improving comfort in noise-sensitive environments.

Finally, CO2 cooling systems eliminate the need for regular leak checks, making maintenance much easier.

DM CO2 TRC chambers combine technological challenges and sustainability in a single product and represent a significant leap forward in the field of simulated environmental testing, through which Angelantoni Test Technologies continues to demonstrate its commitment to innovation and sustainability, leading the industry towards a greener future.

Inspection window
CO2 refrigerant
Internal light
Wheels and feet

Download the general DM catalogue to see the full standard configuration.

Additional portholes
UV lamp: For aging tests on painted surfaces, plastics, rubber, etc.
No break power unit for PLC
Stainless steel internal shelves
Notched porthole
MyAngel24™: the Interactive Support System

Download the catalogue to see the complete list of accessories.

PLC control system and Weazy™ user interface, chamber Supervision and Management software operating on the on-board display (10’’).

Additionally, a wired connection mode is available by connecting the camera to the customer's LAN network for remote access.

Main features:

Storage of acquired measures
Storing cycles up to 370 segments and delaying their execution.
Upload, edit, export, and delete already existing cycles.
Data and cycles info export on memory drive
Storage of alarms and events occurred during chamber operation.
Visualization and graphical analysis of chamber measures and stored recordings.
High configurability of chamber parameters.
Possibility to send notification emails and SMS (SIM card required), only with the MyAngel24™ option

CLIMATIC AND THERMOSTATIC MODELS

T -48/+180°C *

DM340 CO2 TRC (T)
DM600 CO2 TRC (T)
DM1200 CO2 TRC (T)
DM1350 CO2 TRC (T)

DM1600 CO2 TRC (T)

*-50°C available on request
