Compact Climatic Chambers (60-200 L)

Quality and performance are continually put to the test, from the warmest to the coldest climates, from the effect of corrosive agents to stresses during packaging, transport and storage. These factors could lead to breakage, failures or a reduction in product life. ACS Climatic Chambers are designed to support our customers in the development of a product that performs at its full potential.

The Compact Line of ACS Climatic and Thermostatic Chambers combines performance and flexibility. Their limited size and ability to do climatic and thermostatic tests makes them the ideal solution for those who do not have enough space for a large test laboratory.

The carrying out of climatic and thermostatic tests helps to reveal potential defects before the specimen passes into production, ensuring:

A product of tested quality
Savings on design costs
Lower maintenance costs
More satisfied customers

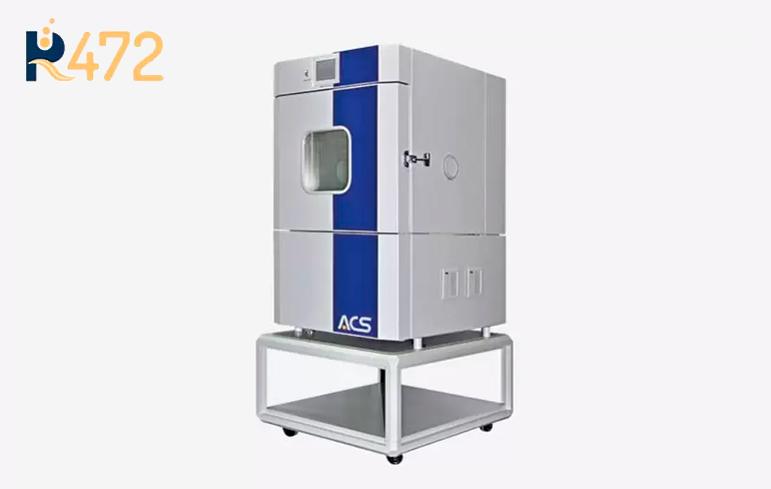

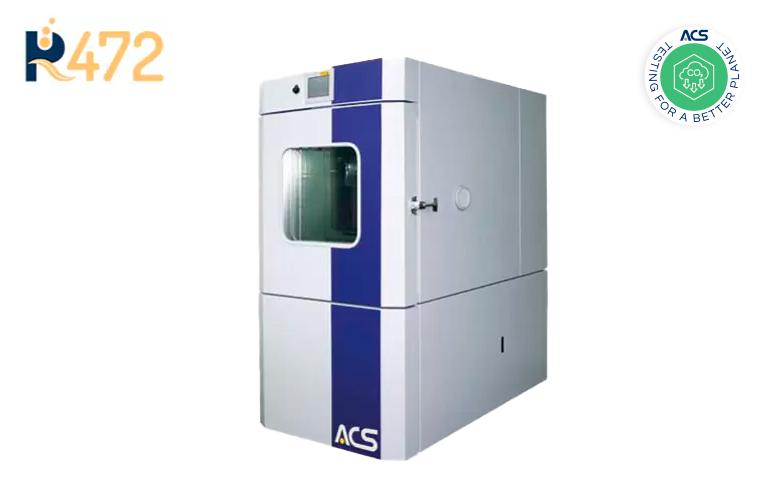

These chambers can be supplied with the new ecological refrigerant gas R472B, having a GWP of 526.

acs-testing-for-a-better-planet-co2-sticker

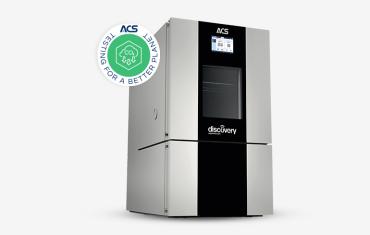

The 200 l model is available also in the version with transcritical CO2 cooling technology. CO2 has a Global Warming Potential (GWP) of 1 and this places it well above the strict requirements of the new FGAS Regulation (EU) 2024/573 and its reductions in the environmental impact of high-GWP refrigerants.

It also offers several advantages:

They do not require chilled water: like the previous FGAS versions that were equipped with an air condenser, they are equipped with an exchanger that allows operation for ambient temperatures up to +35°C..
Energy efficiency: consumption reduced by up to 15% (on average).
Extremely safe: no flammable gases inside
Acoustic comfort: extremely low noise level

With ACS Compact Chambers it is possible to carry out both climatic and thermostatic tests. These are benchtop chambers that offer high performance in small spaces.

Reduced size
Easy installation
Low energy consumption
Low noise emissions
Complete configuration including an inspection window

A compact climatic chamber for use in R&D departments that need to test small components and limited size products.

BENEFITS

The compact body in RAL 9006 grey provides excellent corrosion protection with a powder coated finish
Ecological refrigerant gas in line with the European Regulation 517/2014
Touchscreen panel with TFT technology for faster control
Easy data entry during editing, control and cycle management operations

Inspection window
Ecological refrigerant gas in line with the European Regulation 517/2014
Transcritical CO2 cooling technology for DY200 CO2 TRC climatic and thermostatic models
Internal light
Mechanical door lock

Download the catalogue to see the full standard configuration.

Additional portholes
Water-cooled condenser
Cart with wheels
UV lamp: For aging tests on painted surfaces, plastics, rubber, etc.
Internal shelves: in AISI 304 stainless steel, height adjustable, grid shelves to be added to the one supplied
Notched porthole
New R472B refrigerant gas (DY200 CO2 TRC climatic and thermostatic models excluded)
MyAngel24™ Advanced Services Platform
WinKratos S/W

Download the catalogue to see the complete list of accessories.

Control System

The chamber is equipped with a PLC (Programmable Logic Controller) for managing all the chamber’s functions and safety interlocks.

The chamber basic control is supplied by Weazy™, a very flexible HMI accessible on the 7 inch on board display.

WinKratos (optional) allows the complete management of the chamber functions: from manual control to the creation (through the graphic editor) of test profiles, including monitoring and recording, processing, graphical representation and analysis of data.

MyAngel24™ (optional) is the Advanced Services Platform developed by ACS to offer fast, effiicient and secure remote activities, allowing Automatic Reporting and Preventive Maintenance.

Weazy™ main features:

Ethernet connection to the chamber
Visualization of measures and recordings
High configurability of chamber parameters
Program and Manual chamber operation modes
Delayed start of a program
Automatic notifications of events and alarms
7 days data storage
System available in several languages

THERMOSTATIC MODELS	CLIMATIC AND THERMOSTATIC MODELS
Range T -35/+130°C	Range T -40/+180°C	Range T -40/+180°C
DY16 T	DY60 T	DY110 (T) DY200 (T)
	Range T -70/+180°C	Range T -70/+180°C
	DY60 TC	DY110 C (T) DY200 C (T)
		Range T -48/+180°C
		DY200 CO2 TRC DY200 T CO2 TRC
