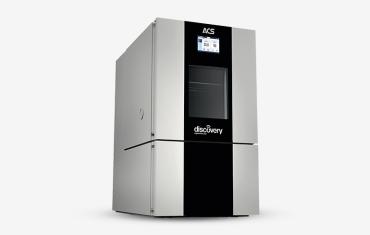

Discovery My Climatic Chambers with air conditioning unit kit
The ACS Climatic and Thermostatic Chambers with air treatment units make it possible to simulate the desired temperature and humidity inside the chamber and to convey the treated air to the inside of an external unit in which the specimen to be tested has been placed.
The Discovery My range with air treatment units is available in the standard, stability test, energy saving and 5K/min and stress screening test versions, in different volumes, to meet every customer’s needs.

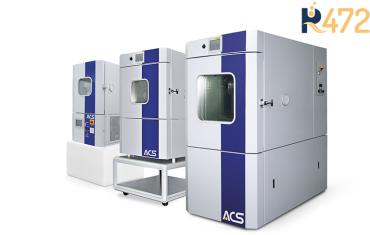

These chambers can be supplied with the new ecological refrigerant gas R472B, having a GWP of 526.Click on the logo for further information.
The ACS Climatic and Thermostatic Chambers with air treatment units make it possible to carry out climatic and thermostatic tests in all those cases in which the dimensions of the DUT (device under test) are such as to prevent its being moved or inserted in a standard test compartment. Therefore an external box acts as the test compartment.

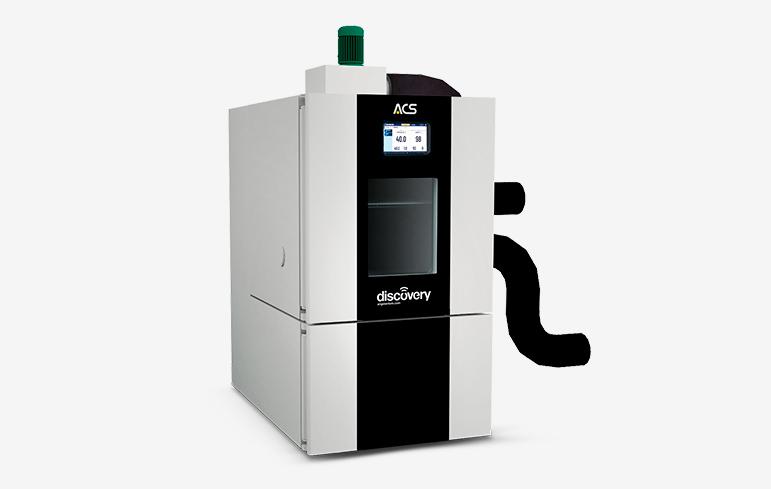

The climatic chamber has a fan for air recirculation, suctioning the air from the test compartment and sending it to the external box. The flexible ducts allow great flexibility in the positioning of the external box, and they are insulated to ensure excellent performance.
The chamber can operate both in stand-alone mode, in which the chamber works independently with relative temperature and humidity control, and in remote box mode, in which the chamber acts as an air treatment generator.
BENEFITS
- The compact body in RAL 7044 grey provides excellent corrosion protection with a powder coated finish
- The electromagnetic door lock provides maximum operator safety
- Ecological refrigerant gas in line with the European Regulation 517/2014
- 10” touchscreen panel with an intuitive, user-friendly interface
- New software that allows remote control of all chamber functions
- Automatic reporting, self-diagnosis, preventive maintenance
- Inspection window
- Ecological refrigerant gas in line with the European Regulation 517/2014
- Internal light
- Wheels and feet
Download the catalogue to see the full standard configuration.
- Additional portholes
- Water-cooled condenser
- UPS for the PLC
- Stainless steel internal shelves
- Notched porthole
- New R472B refrigerant gas
- MyAngel24™: the Interactive Support System
- WinKratos S/W
Download the catalogue to see the complete list of accessories.
Control System
The chamber is equipped with a PLC (Programmable Logic Controller) for managing all the chamber’s functions and safety interlocks.
The chamber basic control is supplied by Weazy™, a very flexible HMI accessible on the 10 inch on board display.
WinKratos (optional) allows the complete management of the chamber functions: from manual control to the creation (through the graphic editor) of test profiles, including monitoring and recording, processing, graphical representation and analysis of data.
MyAngel24™ (optional) is the Advanced Services Platform developed by ACS to offer fast, effiicient and secure remote activities, allowing Automatic Reporting and Preventive Maintenance.
Weazy™ main features:
- Ethernet connection to the chamber
- Visualization of measures and recordings
- High configurability of chamber parameters
- Program and Manual chamber operation modes
- Delayed start of a program
- Automatic notifications of events and alarms
- 7 days data storage
- System available in several languages
BASIC VERSION | E VERSION | ES VERSION | flower® VERSION | ESS VERSION |
CLIMATIC AND THERMOSTATIC MODEL | CLIMATIC MODEL | CLIMATIC AND THERMOSTATIC MODEL | CLIMATIC MODEL | CLIMATIC AND THERMOSTATIC MODEL |
Field T -40/+180°C | Field T -20/+180°C | Field T -40/+180°C | Field T -40/+180°C | Field T -70/+180°C |
DM340 (T) DM600 (T) DM1200 (T) DM1600 (T) | DM340 E DM600 E DM1200 E DM1600 E | DM340 (T) ES DM600 (T) ES DM1200 (T) ES | FM340 FM600 FM1200 | DM 250 C (T) ESS DM 500 C (T) ESS DM 1000 C (T) ESS DM 1400 C (T) ESS |
Field T -70/+180°C | Field T -70/+180°C | Field T -70/+180°C | ||
| DM340 C (T) DM600 C (T) DM1200 C (T) DM1600 C (T) | DM340 C (T) ES DM600 C (T) ES DM1200 C (T) ES | FM340 C FM600 C FM1200 C |
